Bano Drejbart Toilet
Bano Drejbart Toilet revolutionerer badeværelset. Med sit unikke design kan toilettet drejes til begge sider. Dette sikrer god adgang både for kørestolsbrugere og plejepersonale, selv på små badeværelser. Derudover reducerer toilettet forflytninger og skaber mere sikre og komfortable omgivelser for både brugere og plejepersonale.
Toilettet har mulighed for manuel eller elektrisk højdejustering og har en option med vaske- og tørrefunktion. Bano Drejbart Toilet er en komplettløsning, der reducerer behovet for ekstra hjælpemidler som f.eks. toiletforhøjere og WC-håndtag.
Toilettet kan drejes 290 grader og har en højdejustering på 200 mm. En version med længere støttehåndtag er også tilgængelig, med større afstand mellem håndtagene.
Bredde inkl. håndtag
640 mm
Højde øverste kant af sædet
450 mm
Drejediameter (håndtag op)
Ø 805 mm
Drejediameter (håndtag nede)
Ø 855 mm
Max. belastning
180 kg
Max. belastning pr. håndtag
250 kg
| Titel | Filtype | Filstørrelse | |
|---|---|---|---|
|
|
Produktark |
1 MB | |
|
|
Montagevejledning |
1 MB | |
|
|
Montagevejledning Cisterne |
4 MB | |
|
|
FDV |
829 KB | |
Turnable toilet
The toilet seat can easily be rotated using a trigger mechanism integrated in the support handles. The bars can be lowered and raised independently of each other. The back rest and toilet seat cover can easily be removed for cleaning.
Turning toilet module

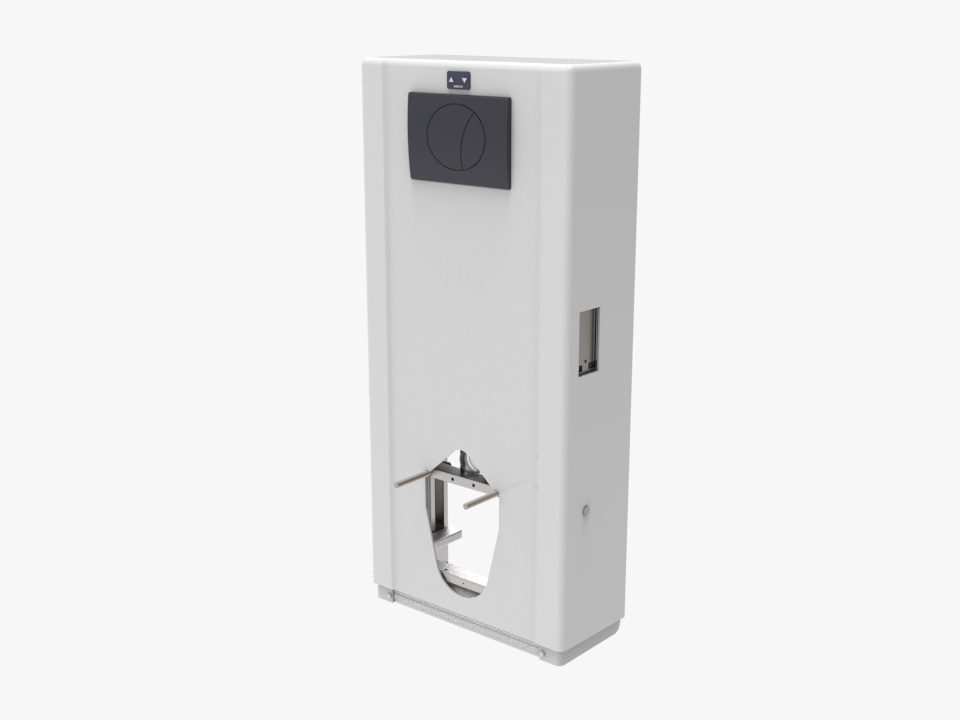

Mobility-impaired users can be dependent on raising the toilet, so that their legs are in contact with the floor and they can rotate the seat themselves safely. Additionally, the toilet can be delivered with a manual or electrical height adjustable cistern. Equipped with the cistern the Bano Turnable Toilet can be lowered and raised by 200 mm, and has a lifting capacity of 300 kg. The manual height adjustment is operated through a crank placed at the bottom side on the cistern itself. The electrical height adjustment function is easily operated from an integrated panel in both support handles or directly on the cistern.
Materials
Bano Turnable Toilet is made from robust materials that can withstand considerable loads and wear-&-tear. Innovative solutions provide optimum functionality and comfort. The porcelain toilet bowl is designed to be easy to clean.
All surfaces are made from innovative composite materials. This improves user comfort and provides a surface that adapts to the user´s body temperature. The toilet seat is designed with comfort and hygiene in mind.
